Request flows

Request flows

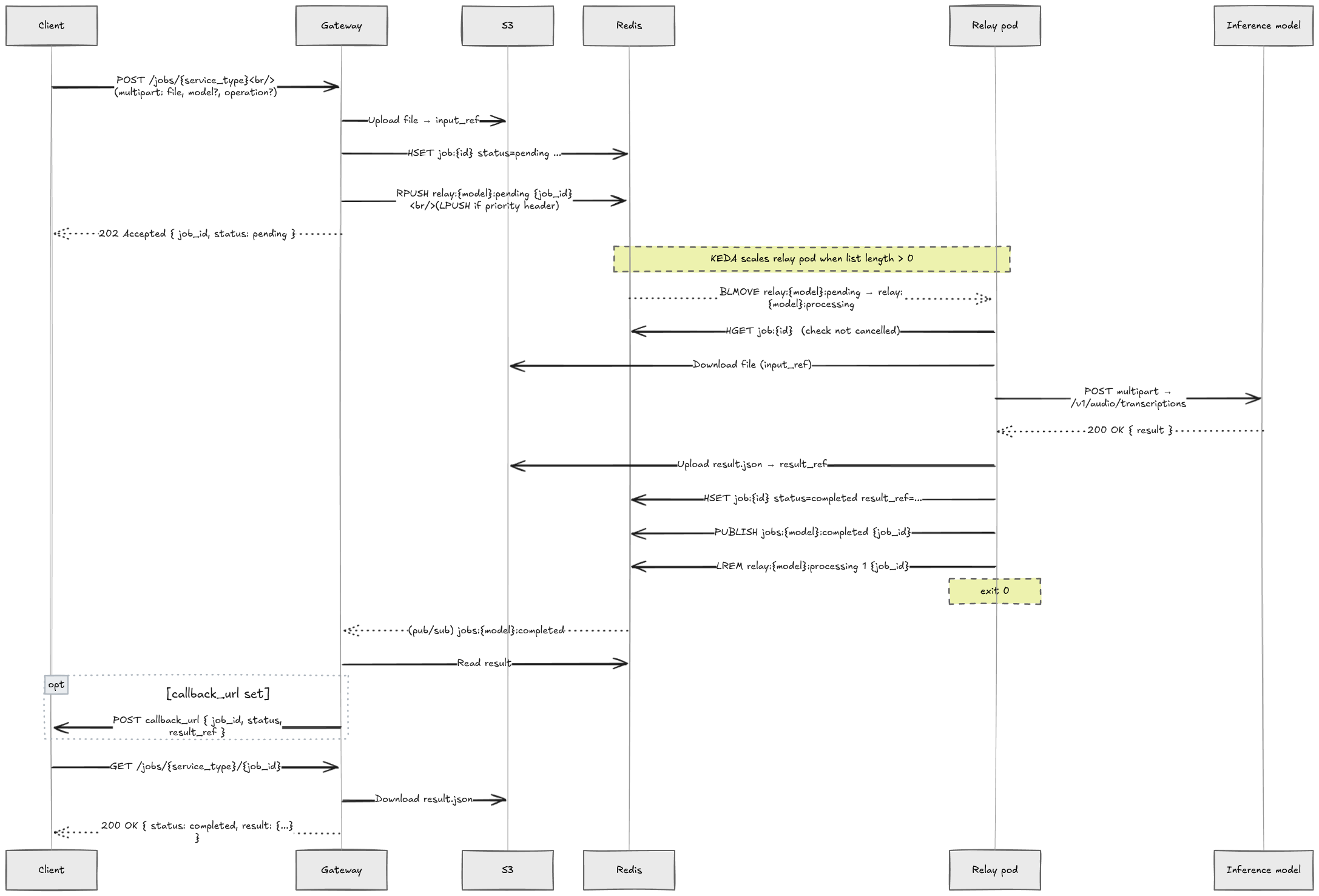

Async mode

POST /jobs/{service_type} — fire and forget, poll for result.

Priority path: when server.priority_header is set and the header is present in the request, LPUSH est utilisé à la place de RPUSH — le job atterrit en tête de queue et est traité en premier par le prochain pod relay.

Client polling:

GET /jobs/{service_type}/{job_id}
→ { status: "pending" | "processing" | "completed" | "failed", result: {...} }

---

Sync direct proxy mode

POST /v1/* — any content type (JSON or multipart).

Client
  │  POST /v1/audio/transcriptions
  │  { "model": "whisper-large-v3", ... }
  ▼
Gateway
  └── HTTP proxy ──────────────────────────────► InferenceService
                                                 (inference_url + original path)
                                                          │
                                                          ▼
                                                 Response proxied back

---

LLM proxy mode

POST /v1/* with JSON body on a service with provider set.

Client
  │  POST /v1/chat/completions  {"model": "my-alias", ...}
  ▼
Gateway — LLM proxy
  ├── Cache lookup  ──────────────────── Redis  SHA-256(canonical body)
  │    HIT  → return cached response  X-Cache: HIT
  │    MISS ↓
  ├── Select backend (weighted-random)
  ├── Translate request (if anthropic: OpenAI → Messages API)
  ├── Forward to backend  ───────────► backend URL
  │    5xx/net error → retry next backend
  │    4xx → stop
  ├── Translate response → OpenAI format
  ├── Track consumer tokens  ────────► Redis  sorted set
  ├── Write response to client  X-Cache: MISS
  └── Async cache-fill (5 s timeout) ► Redis

Streaming (stream: true): SSE piped directly, no cache, no translation.

---

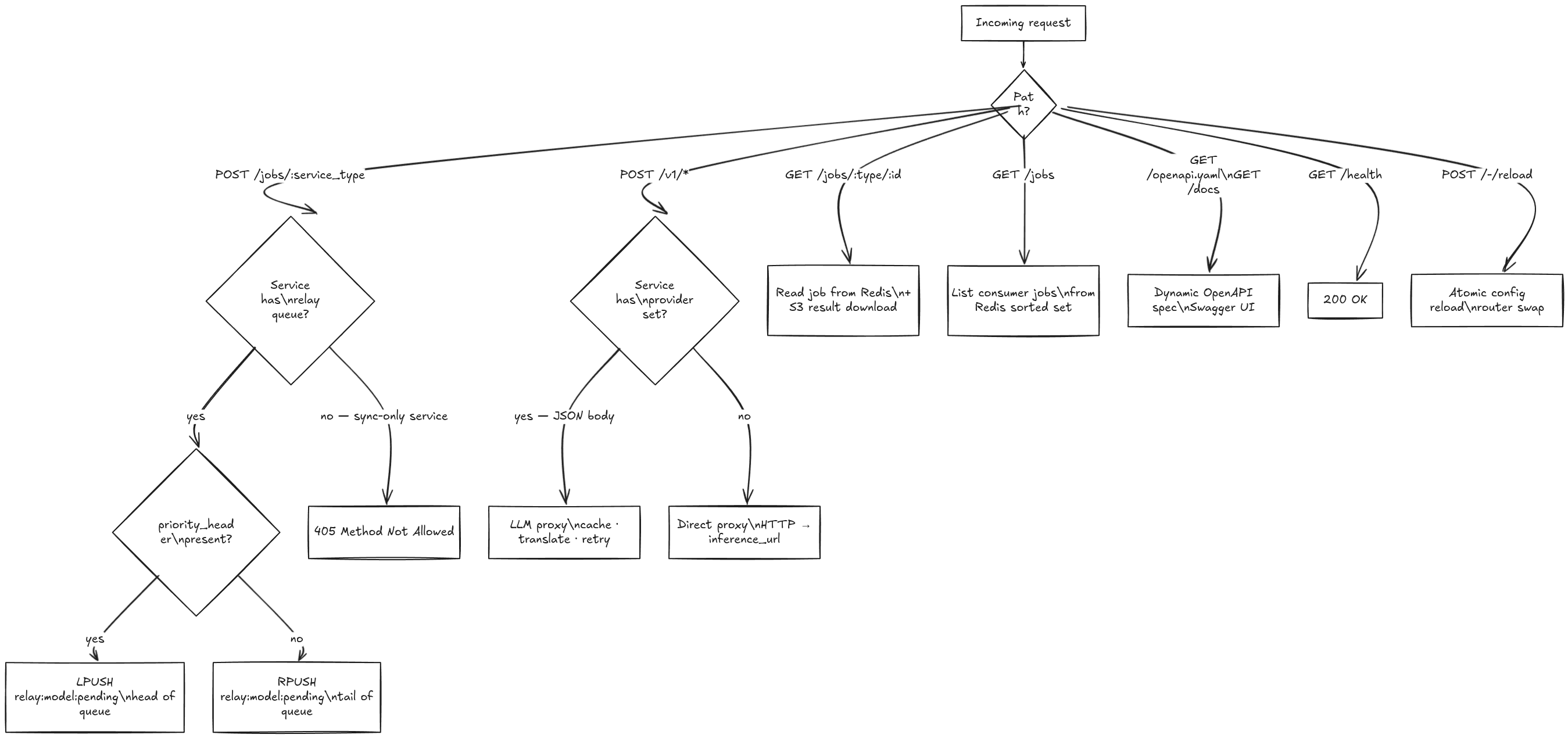

Routing decision
